Gear Wheel
Material: UHWMPE, Nylon
Features: It’s used for supporting the uplink chain in the conveyors, to
prevent effectively the chains from running interference caused by sinking down
of the uplink chains especially for the long distance conveying. It’s made from special reinforced
nylon material. It’s used for supporting the uplink chain in the
conveyors, to prevent effectively the chains from running interference caused
by sinking down of the uplink chains especially for the long distance conveying. It’s made from special reinforced
nylon material.

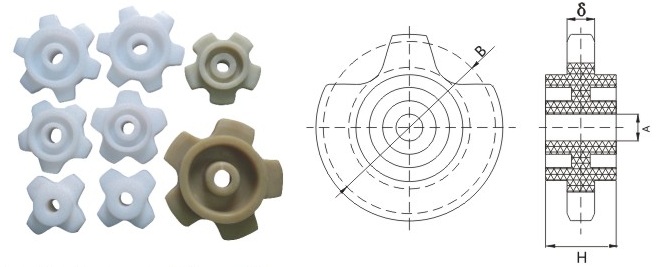

Specification:
|
Model |
A (mm) |
B (mm) |
δ (mm) |
H (mm) |
Pitch (mm) |
No. of Teeth |
|
TL100×5 |
φ25 |
φ170.1 |
34.2 |
70 |
100 |
5 |
|
TL76.2×5 |
φ25 |
φ129.6 |
22.5 |
50 |
76.2 |
5 |
|
TL68×5 |
φ25 |
φ115.6 |
24 |
47 |
68 |
5 |
|
TL68×4 |
φ20 |
96.17 |
25 |
45 |
68 |
4 |
|
TL66.5×6 |
φ26 |
φ125 |
25 |
57 |
66.5 |
6 |
|
TL66.5×5 |
φ20—φ25 |
φ100 |
25 |
57 |
66.5 |
5 |
|
TL66.5×4 |
φ20 |
φ94.05 |
25 |
57 |
66.5 |
4 |
|
TL63.5×5 |
φ20 |
φ108 |
17 |
45 |
63.5 |
5 |
|
TL38.1×8 |
φ26 |
φ99.3 |
20 |
50 |
38.1 |
8 |
|
TL38.1×7 |
φ18 |
φ87.8 |
12.5 |
25 |
38.1 |
7 |
