Reformed Rubber Elevator Belt
Key Features and Benefits
• Low stretch, High tensile strength and
bolt holding.
• Good abrasion resistance,soft and
flexible in operation, long life span
• Oil and fat resistance, static-conducting,
flame-resistance type for selection.
Features

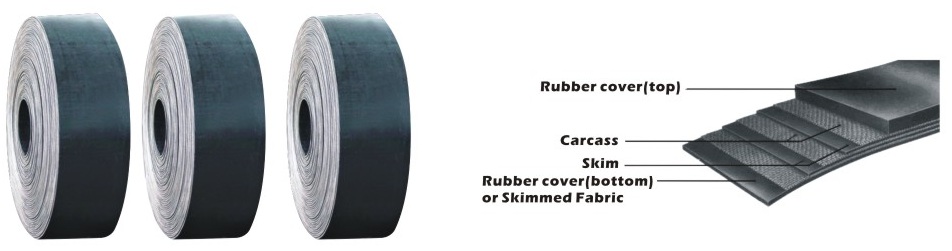

• Additional wear resistant fabric is added onto the bottom rubber which is the
driven side of the belt to increase belt life.
• Well suited to grain handling industries.
Technical Specifications:
Item
Unit
Elevator Belt Type
600YP
800YP
1000YP
Total Tensile strength
N/mm
600
800
1000
Elongation at break≥
%
<1.6
Abrasion≤
mm3
90
Plies
3
4
5
Total thickness
mm
5
6.0-6.5
8
Top/bottom thickness
mm
1.0/1.0
1.2/1.2
1.5/1.5
Bottom also select no cover, add one
ply Fabric
Min. head pulley dia.
mm
300
450
750
Adhesion( ply to ply)
N/mm
≥4.5
Adhesion( cover to ply)
N/mm
≥3.2
Remark: Special size belt can be made as customer's requested.
-------------------------------------------------------------------------------------------------------------
