(Inductive Bucket)
Material: PP/HDPE/NYLON/UHMWPE
Features:
•Specially designed for chain conveyors with horizontal product transmission.
•Commonly used where there is a high demand for low damage to products where
conventional elevator will not work or where there will be dificulties with
loading and discharge of products.
•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food
proved.
•Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
Using Recommendations

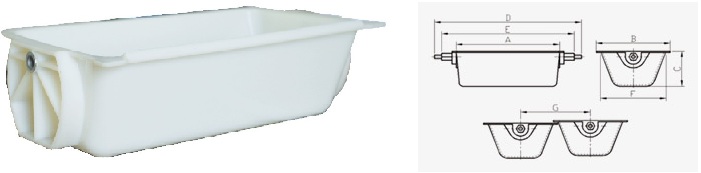

•Dimension “G” is designed by referring to the conveyor chain pitch in the
chain conveyors.
•Consult our engineer for the installation of LL buckets as various dimensions
and figures are needed to be considered.
Technical
Specifications:
|
Model |
Bucket Dimension* (mm) |
Capacity(L) |
||||||
|
Length |
Proj. |
Depth |
D |
E |
F |
G |
||
|
LL2412 |
246 |
132 |
61 |
/ |
282 |
122 |
127 |
1.20 |
|
LL2619 |
260 |
190 |
78.5 |
341 |
309 |
190 |
190.5 |
2.34 |
|
LL3115 |
310 |
160 |
78 |
/ |
354 |
149 |
158.75 |
2.30 |
|
LL3219 |
330 |
200 |
78 |
/ |
373 |
173 |
190.5 |
3.19 |
|
LL3319 |
368 |
198 |
103 |
440 |
400 |
173 |
190.5 |
4.00 |
|
LL3821 |
384 |
213 |
125 |
480 |
430 |
195 |
203.5 |
4.80 |
|
LL3921 |
390 |
218 |
120 |
/ |
/ |
/ |
/ |
5.20 |
|
LL4013 |
406 |
133 |
69 |
/ |
430 |
110 |
127 |
2.00 |
|
LL6323 |
651 |
236 |
120 |
762 |
717 |
205 |
228.6 |
11.00 |
Hengtong Elevator Buckets
•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Less weight, prolong service life of buckets and belts, reduce elevator consumption.
•A direct replacement for many other international brands.
•Unique elevator bucket design with multiple patents.
•Our elevator buckets are well regarded, worldwide for high cost /quality ratio.
|
Material |
HDPE |
Nylon 6 |
UHMWPE |
PU |
Mild Steel |
Stainless |
|
Cost |
1 |
3 |
3 |
4 |
2 |
4 |
|
Wear Resistance |
1 |
2 |
3 |
4 |
3 |
4 |
|
Impact Resistance |
1 |
2 |
2 |
2 |
2 |
2 |
|
FDA Food Approved |
Yes |
Yes |
Yes |
No |
No |
No |
|
Max Temp℃ Continuous |
70 |
100 |
70 |
60 |
180+ |
250+ |
|
Max Temp℃ Peak |
80 |
120 |
80 |
70 |
220 |
400 |
Remark: Code 1=low 4=high
•HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
•Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
•UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
•PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
•Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
•Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.
-----------------------------------------------------------------------------------------------------------------------------------
