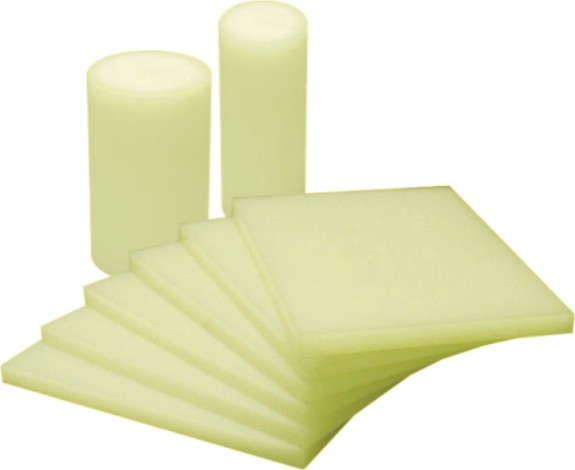

Nylon Sheet and Rod
Features:
Natural@balck standard grade of Monomer cast Nylon offers an excellent combination of Mechanical strength ,stiffness and electrical insulation and wear properties,these properties make our standard grade of nylon the perfect choice for use as gears,rollers,star wheels scrolls and many mechanical applications where the use of metal is not possible.
Green/yellow oil filled nylon 6
Green@yellow oil filled cast nylon is an internally lubricated of nylon that is commonly used in applications where applied lubricants cannot be used ,Oil filled nylons have a lower co-effciend of friction over standard grades of nylon and also offer improved wear resistance
Applications:
Friction bearing,bushings,gears,valve seats,couplings,rollers,cams,clamps,pump components,snap connectors.
ITEM
UNITS
VALUE
Density
g/cm3
1.15-1.16
Water
absorption
%
<=0.6
Frictional
coefficient
<0.45
Wear
loss
Mg
<4.5
Compressive
strength
Mpa
127
Rockwell
hardness
RHM
112
Tensile
strength
MPA
79
Flexural
strength
Mpa
130-150
IZOD
impact strength
KJ/m
>14
Elongation
at
%
60
Shear
strength
MPA
80-95
Bending
elastic modulus
Gpa
26.4-31
Heat
deformation temperature(0.46MPA)
℃
120
Breakdown
voltage
KV/mm
18.6
Nylon Sheet
Item
Length（mm）
Width（mm）
Thickness (mm)
Sheet 1
2000
2000
8-300
Sheet 2
1300
2600
8-300
Sheet 3
4000
600
8-300
Nylon Rod
|
Item |
Outer Diamete (mm) |
Length（mm） |
|
Rod |
Φ10-Φ2000 |
As customer’s request |
|
Tube |
Φ40-Φ2000 |
