Chain Sprocket
Material: Carbon
Steel, Stainless Steel
Model
Pitch
(mm)
Width between inner plates
(mm)
Roller Diameter
(mm)
No. of Teeth
Note
LN60
60
25.3
22.23
6~18
Holes drilling can be made according to the
customer’s request.
LN66.5
66.5
26.5
22.23
6~18
LN68
68
25
22.23
6~18
LN76.2
76.2
30
30
6~18
LN100
100
38.5
36
6~15
LN125
125
32
25
6~15
LN160
160
27
32
6~15

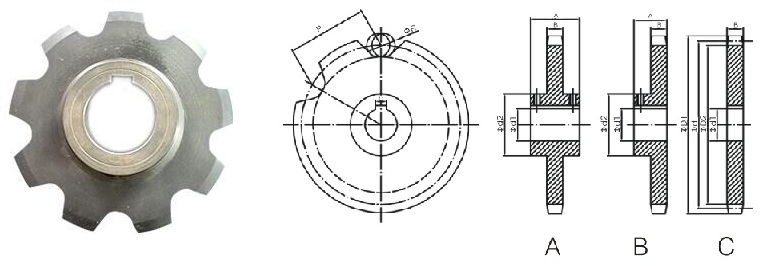

Model: Type A, Type B, Type C
Specification:
Remark: Special size could be made as customer's requested
