LH Type Elevator Bucket
(Drying Bucket)
Material:
HDPE/NYLON/UHMWPE
Features:
•Well suited to agricultural applications such as drying of rice, seeds and
grains as well as any other products that have to be dried/treated for further
processing.
•High impact, abrasion resistance, no-corrosion, smooth surface,
FDA Food proved.
•Ideal
for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
Using Recommendations
•Minimum bucket spacing: bucket projection “B” + 25mm.
•For engineering purposes, we recommend using “(Z-Y) + 10%” for usable
capacity.
•Mounting holes can be customized on request.

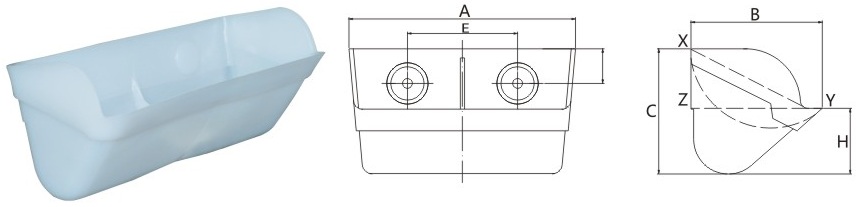

Technical Specifications:
Model
Bucket Dimension*
Mounting Holes
Capacity(L)
Length
Proj.
Depth
Center
Number
Hole
Distance
X-Y
(Z-Y)+10%
Z-Y
LH1106
116
62
62
63
2
7
13
0.17
0.11
0.10
LH1406
143
64
71
76
2
7
19
0.22
0.18
0.16
LH1409
147
94
87
96.5
2
7
20
0.42
0.21
0.19
LH1808
189
87
79
100
2
7
20
0.53
0.37
0.34
LH1910
197
100
87
65
3
7
17
0.74
0.34
0.31
LH2512
255
123
116
141
2
9
30
1.40
1.10
1.00
(mm)
(mm)
A
B
C
to
Center
E
of
Holes
Diameter
Down
D
--------------------------------------------------------------------------------------------------------------------------------------
Hengtong Elevator Buckets
•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Less weight, prolong service life of buckets and belts, reduce elevator consumption.
•A direct replacement for many other international brands.
•Unique elevator bucket design with multiple patents.
•Our elevator buckets are well regarded, worldwide for high cost /quality ratio.
|
Material |
HDPE |
Nylon 6 |
UHMWPE |
PU |
Mild Steel |
Stainless |
|
Cost |
1 |
3 |
3 |
4 |
2 |
4 |
|
Wear Resistance |
1 |
2 |
3 |
4 |
3 |
4 |
|
Impact Resistance |
1 |
2 |
2 |
2 |
2 |
2 |
|
FDA Food Approved |
Yes |
Yes |
Yes |
No |
No |
No |
|
Max Temp℃ Continuous |
70 |
100 |
70 |
60 |
180+ |
250+ |
|
Max Temp℃ Peak |
80 |
120 |
80 |
70 |
220 |
400 |
Remark: Code 1=low 4=high
•HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
•Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
•UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
•PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
•Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
•Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.
-----------------------------------------------------------------------------------------------------------------------------------
