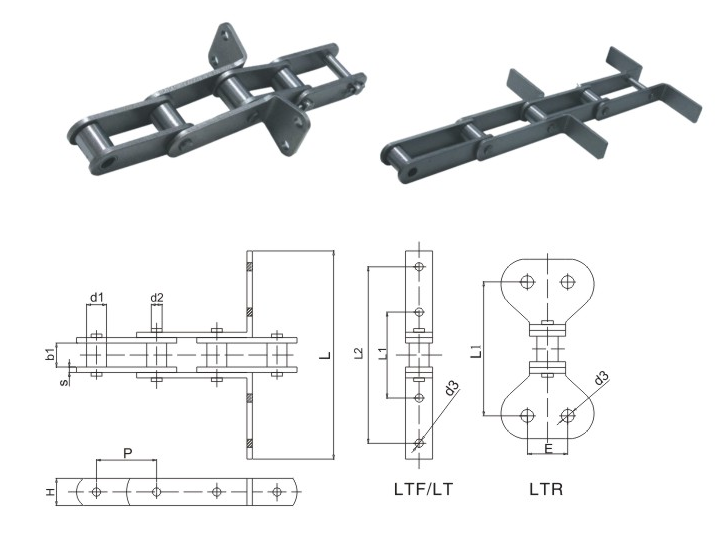

Drag Conveyor Chain
Material: Carbon Steel, Stainless steel
Suitable: LTR—For
Round plastic drag flight, to install U
type scrapper (conveyor)
LTF—For
EN Masse plastic type plastic drag flight, to install flat scrapper (conveyor)
LT—For
Metal drag flight conveyor
Features:
• It consists of a combination of inner and outer links.
• The bush/pin connections between the links are available in a circlip, split
pin, or a riveted version.
• The steel scrapers can be either bent or welded.
• UHMWPE lights are suggested to attach to the scrapers for more eficiency and
high wear resistance.
Technical specifications:
|
Model |
Pitch |
Width between inner plates |
Roller Dia. |
Bush
Dia. |
Pin
Dia. |
chain Plate
Width |
Thick
of |
Size of Attached Board |
Maximum Elongation Loading (KN) |
||||
|
P |
b1 |
d1 |
|
d2 |
H |
S |
L |
L1 |
L2 |
E |
d3 |
||
|
LTR68(4) |
68 |
26 |
22.23 |
|
9.5 |
23 |
4 |
112.2 |
78.9 |
|
|
7 |
55 |
|
LTR68(5) |
68 |
26 |
22.23 |
|
11.1 |
29 |
5 |
122 |
102 |
|
32 |
9 |
90 |
|
LTR60 |
60 |
25.3 |
22.23 |
|
11.1 |
30 |
6 |
130 |
102 |
|
32 |
9 |
90 |
|
LTR66.5 |
66.5 |
26.5 |
22.23 |
|
12.7 |
30 |
6 |
130 |
102 |
|
32 |
9 |
130 |
|
LTR66.675 |
66.8 |
26.5 |
22.23 |
|
12.7 |
30 |
6 |
130 |
102 |
|
32 |
9 |
130 |
|
LTR100 |
100 |
38 |
36 |
|
16 |
40 |
6 |
130 |
102 |
|
32 |
9 |
220 |
|
LTF66.5 |
66.5 |
26.5 |
22.23 |
|
12.7 |
30 |
6 |
160-270 |
102 |
228 |
|
9 |
130 |
|
LTF66.675 |
66.68 |
26.5 |
22.23 |
|
12.7 |
30 |
6 |
182-295 |
90-95 |
150-195 |
|
9 |
90 |
|
LTF100 |
100 |
38 |
36 |
22 |
16 |
40 |
6~8 |
170-294 |
104-115 |
194-245 |
|
9 |
220 |
|
LTF100B |
100 |
28 |
22.23 |
|
14.27 |
30 |
5 |
225 |
95 |
195 |
|
9 |
90 |
|
LTF125 |
125 |
50 |
32 |
|
19.9 |
50 |
6~8 |
260-305 |
115 |
235-268 |
|
9 |
220 |
|
LTF125B |
125 |
32.5 |
28.58 |
20 |
14.27 |
40 |
6~8 |
235 |
95 |
195 |
|
9 |
170 |
|
LTF160 |
160 |
27 |
32 |
20 |
14.27 |
45 |
6~8 |
290 |
193 |
|
|
9 |
193 |
Remark: Special size chains can be made as customer's requested.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
