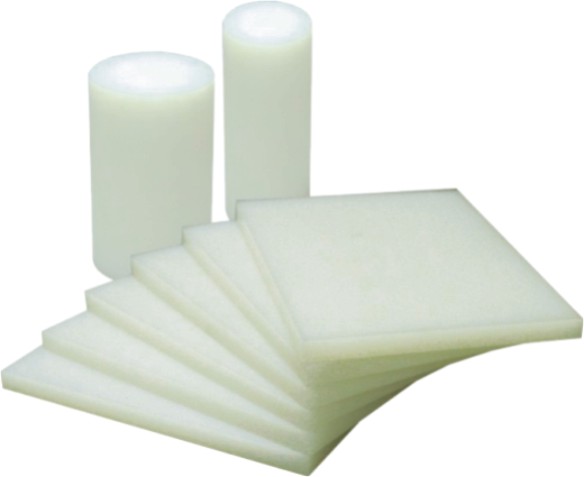

HDPE Sheet and Rod
Features:
1. Products, light, texture
dense, smooth surface, color and luster.
2. Has high impact resistance,
corrosion resistance, abrasion resistance and resistance to environmental
stress cracking.
3. Products, health, non-toxic,
odorless, excellent electrical properties and chemical stability.
4. Has good tensile strength
and tear strength,
5. With oil,
corrosion-resistant bacteria such as better stability
6. Products deformation is
small, hard suction, easy to process.
High-density polyethylene non-toxic, tasteless, odorless white particles, the melting point of about130 ℃, relative density 0.941 ~ 0.960. It has good heat resistance and cold resistance, chemical stability, also has high rigidity and toughness, good mechanical strength. Dielectric properties, resistance to environmental stress cracking resistance is better. Melting temperature of 220 ~260 ℃. For molecules larger materials, the proposed range of melting temperature between 200 ~250 ℃.
Technical data:
|
Item |
unit |
Value |
|
Density |
g/cm 3 |
0.949-0.953 |
|
mPa |
Mpa |
50 |
|
Elongation at Break |
% |
280 |
|
intensity |
Kj/cm 2 |
13 |
|
Operating Temperature |
℃ |
-48-100 |
|
Hardness |
Shore |
60 (stanLTBQarLTBQ) |
|
thermal expansion |
℃ |
1.5x10 -4 |
|
Variable Temperature Heat |
℃ |
120 |
|
resistivity |
|
10 15 |
|
dielectric constant |
KV/mm |
75 |
|
Absorption Capacity |
% |
<0.01 |
HDPE Sheet
|
Item |
Length（mm） |
Width（mm） |
Thickness (mm) |
|
Sheet 1 |
1000-10000 |
800-1200 |
0.5-30 |
|
Sheet 2 |
2080 |
1040 |
10-200 |
HDPE Rod
|
Item |
Outer Diameter（mm） |
Length（mm） |
|
Rod |
Φ140-Φ500 |
As customer’s request |
|
Tube |
Φ20-Φ250 |
