Drop Forged Chain
Material: 40Cr, 20CrMnTi
Features:
•It consists of forged steel links, which can be equipped with various plastic or steel scrapers. The connection pin between these links is in a circlip version.
•Special heat treated alloy steel,drop forged and precision machined, with case hardened.
•High strength, strong load-carrying capability.
•Extremely hard exterior surface and superior wear
resistance.

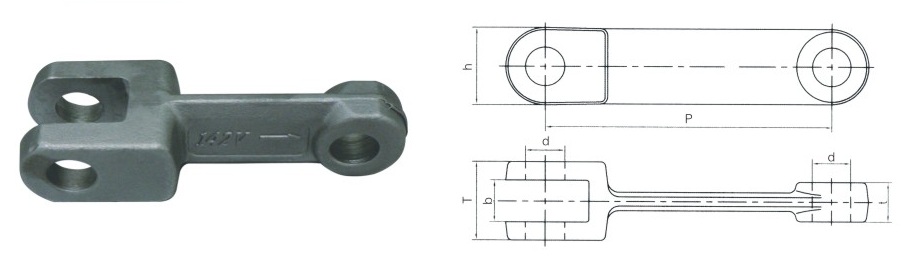

Technical specifications:
|
No. |
Type |
P |
T |
t |
b |
d |
h |
Tensile strength KN |
|
mm |
||||||||
|
1 |
S16 |
100 |
30 |
14 |
16 |
F14 |
27 |
150 |
|
2 |
Z16 |
100 |
40 |
18 |
20 |
F17 |
35 |
260 |
|
3 |
S20 |
125 |
34 |
16 |
18 |
F17 |
33 |
250 |
|
4 |
Z20 |
125 |
50 |
24 |
26 |
F20 |
45 |
350 |
|
5 |
S25 |
160 |
48 |
23 |
25 |
F20 |
39 |
350 |
|
6 |
Z25 |
160 |
58 |
28 |
30 |
F25 |
55 |
550 |
|
7 |
3002 |
142 |
46 |
22 |
24 |
F25 |
50 |
350 |
|
8 |
3003 |
142 |
64 |
29 |
31 |
F25 |
50 |
500 |
|
9 |
3006 |
200 |
65 |
30 |
33 |
F32 |
70 |
750 |
|
10 |
Ms55 |
200 |
80 |
35 |
38 |
F28 |
70 |
650 |
|
11 |
ML40 |
200 |
48 |
23 |
25 |
F25 |
58 |
500 |
|
12 |
MS63 |
200 |
70 |
30 |
33 |
F32 |
80 |
900 |
|
13 |
MG20 |
200 |
70 |
27 |
29 |
F35 |
70 |
850 |
Remark: Special size chains can be made as customer's requested
