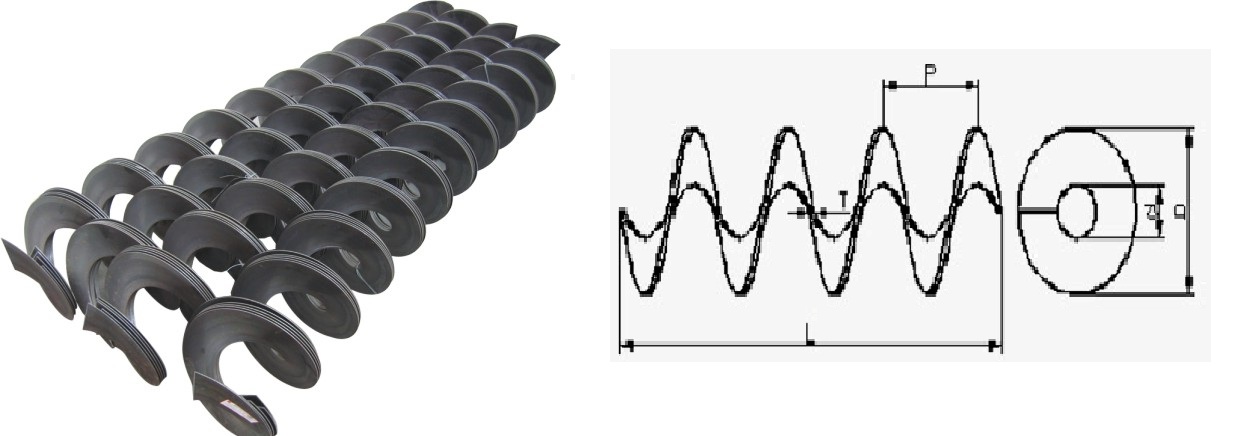

Continuous Cold Rolled Screw Flight / Auger Flighting
Material: Carbon Steel, Stainless steel
Features:
• Continous length (endless), cut to any length design;
• Smooth finished surface, uniform shape, high precision
• Good tensile strength and wear resistance
Technical Specifications:
Standard Model
Outer Diameter
(mm)
Inner Diameter
(mm)
Pitch
(mm)
Thickness
(mm)
Standard
Length (m)
LY100
φ100
φ28—φ30
100
3.5
2
LY125
φ125
φ30—φ42
100—125
3.5-5
2
LY160
φ160
φ42
120—160
3.5-5
2
LY200
φ200
φ48
160—200
3.5-5
2
LY250
φ250
φ60
200—250
3.5-6
2
LY300
φ300
φ60
250—300
3.5-6
2
LY320
φ320
φ76
250—320
3.5-5
2
LY400
φ400
φ108
320—400
5-6
2
LY500
φ500
φ133
400
5-6
2
LY630
φ630
450—500
5-6
2
LY800
φ800
500
5-6
2
Remark: Special size screw flights could be made as customer's requested
--------------------------------------------------------------------------------------------------------------------------------------------------
