LM Type Elevator Bucket
(Rice Milling Bucket)
Material: HDPE/NYLON/UHMWPE
Features:
•Continuous Discharge elevator bucket for agricultural use. Suitable for low
speed discharge elevators with belt speed of 0.5~0.8mtrs/s.
•A perfect choice for products that are fragile or easily damaged. The low
speed of discharge makes it an ideal bucket for moving products that need to be
conveyed with minimal impact.
•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food
proved.
•Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
Using Recommendations
•Minimum bucket spacing: bucket depth "C"
+2mm.
•For engineering purposes, we recommend using“L” for
usable capacity.
•Mounting holes can be customized on request.

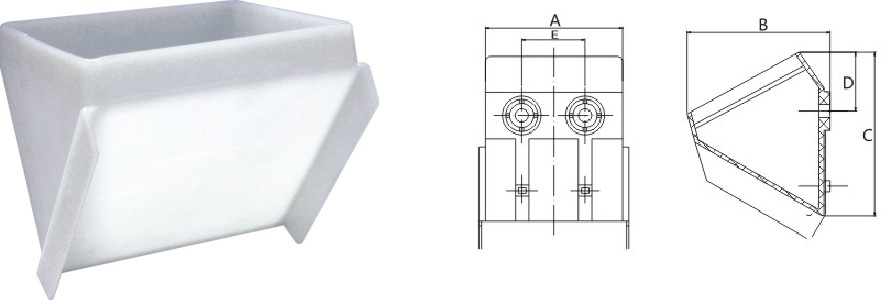

Technical Specifications:
|
Model |
Bucket Dimension* |
Mounting Holes |
Capacity |
||||||
|
Length |
Proj. |
Depth |
Distance |
Center |
Number |
Hole |
F |
||
|
LM1010 |
105 |
110 |
129 |
48 |
50 |
2 |
9 |
142 |
0.70 |
|
LM1310 |
138 |
110 |
128 |
37 |
80 |
2 |
7 |
142 |
0.88 |
|
LM1413 |
143 |
143 |
172 |
52 |
93 |
2 |
9 |
186 |
1.60 |
|
LM1715 |
175 |
156 |
176 |
52 |
113 |
2 |
9 |
189 |
2.40 |
|
LM2017 |
207 |
179 |
194 |
60 |
139 |
2 |
9 |
215 |
3.60 |
|
LM2313 |
230 |
138 |
162 |
44 |
125 |
2 |
7 |
175 |
2.21 |
|
LM2917 |
296 |
173 |
197 |
60 |
110 |
3 |
9 |
217 |
5.26 |
|
LM2921 |
294 |
210 |
200 |
55 |
113 |
3 |
9 |
223 |
6.20 |
Hengtong Elevator Buckets
•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Less weight, prolong service life of buckets and belts, reduce elevator consumption.
•A direct replacement for many other international brands.
•Unique elevator bucket design with multiple patents.
•Our elevator buckets are well regarded, worldwide for high cost /quality ratio.
|
Material |
HDPE |
Nylon 6 |
UHMWPE |
PU |
Mild Steel |
Stainless |
|
Cost |
1 |
3 |
3 |
4 |
2 |
4 |
|
Wear Resistance |
1 |
2 |
3 |
4 |
3 |
4 |
|
Impact Resistance |
1 |
2 |
2 |
2 |
2 |
2 |
|
FDA Food Approved |
Yes |
Yes |
Yes |
No |
No |
No |
|
Max Temp℃ Continuous |
70 |
100 |
70 |
60 |
180+ |
250+ |
|
Max Temp℃ Peak |
80 |
120 |
80 |
70 |
220 |
400 |
Remark: Code 1=low 4=high
•HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
•Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
•UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
•PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
•Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
•Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.
-----------------------------------------------------------------------------------------------------------------------------------
