Introduction

Shallow Bottom Steel Bucket

Material:Carbon Steel / Stainless Steel
Features:
•Shallow bottom style for higher capacity at closer bucket spacing.
•Monobloc pressed seamless construction. The Smooth inner and outer surface finish assist with a cleaner discharge of products.
•Well suited to high temperature applications, or where heavy products or sharp products are likely to be elevated.
Using Recommendations:
•Minimum bucket spacing: bucket projection “B” or “B”-20mm
•For engineering purpose, we recommend use“(Z-Y) + 10% ” as usable capacity.
•Special thickness is available on request.
Technical Specifications:

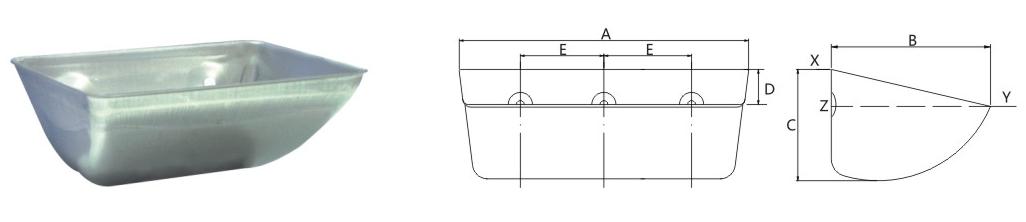

Model	Bucket Dimension* (mm)			Mounting Holes (mm)				Capacity(L)
Model	Length A	Proj. B	Depth C	Distance Down D	Center to Center E	Number of Holes	Hole Diameter	X-Y	(Z-Y)+5%	Z-Y
LBTQ0807	90	75	48	15	50	2	7	0.20	0.17	0.25
LBTQ1009	102	90	60	20	50	2	7	0.29	0.20	0.19
LBTQ1109	110	90	60	20	60	2	7	0.32	0.27	0.26
LBTQ1210	120	100	65	20	60	2	7	0.36	0.29	0.27
LBTQ1307	130	75	48	14	60	2	9	0.37	0.30	0.28
LBTQ1309	130	90	60	20	60	2	9	0.40	0.31	0.29
LBTQ1311	138	112	63	21	60	2	9	0.62	0.43	0.34
LBTQ1312	136	120	65	22	60	2	9	0.66	0.46	0.42
LBTQ1409	140	90	60	20	60	2	9	0.48	0.34	0.31
LBTQ1411	140	112	60	20	60	2	9	0.63	0.40	0.37
LBTQ1508	150	75	48	14	60	2	9	0.50	0.38	0.35
LBTQ1511	150	112	60	20	60	2	9	0.68	0.48	0.43
LBTQ1612	163	125	65	23	90	2	9	0.86	0.76	0.73
LBTQ1613	163	130	68	23	90	2	9	1.00	0.78	0.74
LBTQ1812	188	125	80	25	100	2	9	1.09	0.80	0.76
LBTQ1814	188	142	100	28	100	2	9	1.30	0.90	0.82
LBTQ1914	190	140	92	28	100	2	9	1.42	1.10	1.00
LBTQ2014	203	140	95	28	100	2	9	1.64	1.30	1.22
LBTQ2109	210	90	58	20	120	2	9	1.40	0.95	0.88
LBTQ2312	234	125	80	25	120	2	9	1.52	1.16	1.10
LBTQ2314	235	140	100	28	120	2	9	1.75	1.33	1.26
LBTQ2316	236	169	105	35	120	2	9	2.30	1.75	1.68
LBTQ2417	240	170	109	28	120	2	9	2.40	1.80	1.70
LBTQ2614	265	140	94	28	100	3	9	2.32	1.76	1.69.
LBTQ2616	260	162	100	28	100	3	9	2.65	1.90	1.85
LBTQ2812	288	125	90	28	100	3	9	1.89	1.70	1.61
LBTQ2814	282	143	95	28	100	3	9	2.17	1.80	1.70
LBTQ2816	286	169	110	32	100	3	9	2.65	2.31	2.20
LBTQ2817	280	178	100	32	100	3	9	3.18	2.73	2.63
LBTQ2818	290	182	115	32	100	3	9	3.42	2.80	2.77
LBTQ2820	280	200	130	35	100	3	11	4.00	3.00	2.80
LBTQ2824	285	240	148	35	100	3	11	4.25	3.33	3.17
LBTQ2916	290	165	115	35	100	3	11	3.23	2.36	2.25
LBTQ3016	308	160	100	32	100	3	11	3.66	2.58	2.46
LBTQ3018	303	183	125	35	100	3	11	4.26	3.80	3.50
LBTQ3021	300	215	142	35	100	3	11	5.50	4.20	4.00
LBTS3114	305	140	90	32	100	3	11	3.20	2.60	2.40
LBTQ3118	315	190	110	35	100	3	11	5.30	4.00	3.80
LBTQ3121	315	220	130	38	100	3	11	5.60	4.30	4.10
LBTQ3216	320	160	100	35	100	3	11	4.20	3.70	3.60
LBTQ3218	320	180	125	40	80	4	11	5.50	4.20	4.00
LBTQ3316	330	165	120	40	80	4	11	5.10	4.00	3.80
LBTQ3321	333	217	138	38	80	4	11	5.71	4.40	4.10
LBTQ3325	340	255	130	38	80	4	11	6.00	4.50	4.20
LBTQ3518	350	182	110	38	90	4	11	4.00	3.00	2.80
LBTQ3621	360	220	128	38	90	4	11	6.18	4.39	4.18
LBTQ3823	380	230	126	38	90	4	11	6.61	4.60	4.20
LBTQ3917	390	170	125	35	100	4	9	5.00	3.42	3.25
LBTQ4118	415	190	115	40	95	4	11	5.73	4.42	4.12
LBTQ4121	415	220	125	45	95	4	11	7.07	5.16	5.08
LBTQ4126	420	160	110	38	90	4	11	6.08	4.10	4.00
LBTQ4423	440	233	150	50	85	5	11	7.30	5.20	5.10
LBTQ4621	460	220	130	45	85	5	11	8.87	6.27	5.90
LBTQ4723	475	233	150	50	95	5	11	9.10	6.40	6.10
LBTQ4626	460	260	175	50	95	5	11	10.88	7.45	6.80
LBTQ5121	518	220	130	45	95	5	11	9.6	7.30	6.50
LBTQ5626	560	260	175	50	105	5	11	15.21	11.15	7.55

--------------------------------------------------------------------------------------------------------------------------------

Hengtong Elevator Buckets

•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Less weight, prolong service life of buckets and belts, reduce elevator consumption.
•A direct replacement for many other international brands.
•Unique elevator bucket design with multiple patents.
•Our elevator buckets are well regarded, worldwide for high cost /quality ratio.

Material	HDPE	Nylon 6	UHMWPE	PU	Mild Steel	Stainless
Cost	1	3	3	4	2	4
Wear Resistance	1	2	3	4	3	4
Impact Resistance	1	2	2	2	2	2
FDA Food Approved	Yes	Yes	Yes	No	No	No
Max Temp℃ Continuous	70	100	70	60	180+	250+
Max Temp℃ Peak	80	120	80	70	220	400

Remark: Code 1=low 4=high

•HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .

•Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.

•UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.

•PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.

•Mild Steel: General purpose, long life, well suited to agricultural and industrial products.

•Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.

------------------------------------------------------------------------------------------------------------------------------------
