Deep Bottom Steel Bucket

Material: Carbon Steel / Stainless Steel
Features:
•Deep bottom style to achieve the maximum individual capacity, while still maintaining the perfect fill and discharge characteristics of the original S type steel elevator bucket.
•Monobloc pressed seamless construction. The Smooth inner and outer surface finish, assist with a cleaner discharge of products.
•Well suited to high temperature applications, or where heavy products or sharp products are likely to be elevated.

Using Recommendations:
•Minimum bucket spacing: bucket projection “B” or “B”-20mm
•For engineering purpose, we recommend use“(Z-Y) + 10% ” as usable capacity.
•Special thickness is available on request.

Technical Specifications:

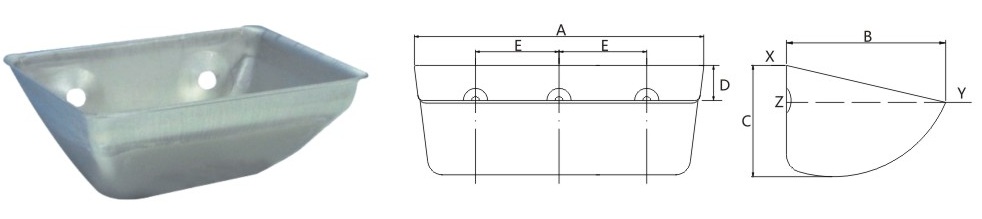

Model	Bucket Dimension* (mm)			Mounting Holes (mm)				Capacity(L)
	Bucket Dimension* (mm)			Mounting Holes (mm)				Capacity(L)
	LengthA	Proj. B	Depth C	Distance Down D	Center to Center E	Number of Holes	Hole Diameter	X-Y	(Z-Y)+10%	Z-Y



LBTS0807	88	78	58	15	50	2	7	0.21	0.19	0.18
LBTS1009	102	90	65	18	50	2	7	0.34	0.28	0.25
LBTS1109	110	90	68	18	60	2	9	0.38	0.30	0.28
LBTS1307	130	75	60	15	60	2	9	0.41	0.32	0.30
LBTS1311	138	112	85	22	60	2	9	0.65	0.54	0.50
LBTS1312	136	120	85	22	60	2	9	0.82	0.7	0.64
LBTS1409	140	90	68	18	60	2	9	0.56	0.41	0.38
LBTS1411	140	112	85	22	60	2	9	0.69	0.58	0.54
LBTS1508	150	75	60	18	80	2	9	0.60	0.43	0.40
LBTS1511	150	112	86	22	80	2	9	0.94	0.80	0.75
LBTS1612	163	125	95	28	100	2	9	1.31	0.98	0.89
LBTS1613	163	130	105	30	100	2	9	1.58	1.32	1.2
LBTS1812	188	125	95	28	100	2	9	1.50	1.30	1.18
LBTS1814	188	142	110	30	100	2	9	1.77	1.52	1.38
LBTS1914	190	140	115	30	100	2	9	1.80	1.53	1.40
LBTS2014	203	148	115	30	100	2	9	2.07	1.70	1.53
LBTS2312	236	125	105	30	120	2	9	1.90	1.65	1.50
LBTS2314	233	140	115	30	120	2	9	2.30	1.96	1.78
LBTS2316	236	162	130	35	120	2	9	2.83	2.35	2.10
LBTS2417	240	170	130	35	120	2	9	2.81	2.30	2.05
LBTS2614	265	140	110	30	80	3	11	2.67	2.20	2.00
LBTS2616	260	162	126	35	80	3	11	3.22	2.50	2.30
LBTS2812	288	125	110	30	100	3	11	2.71	2.22	2.02
LBTS2814	282	140	115	30	100	3	11	2.95	2.49	2.26
LBTS2816	287	162	130	35	100	3	11	3.62	3.10	2.82
LBTS2817	280	170	130	35	100	3	11	3.82	3.20	2.92
LBTS2818	290	180	142	38	100	3	11	4.33	3.85	3.50
LBTS2823	285	230	168	45	100	3	11	5.43	4.50	4.10
LBTS2916	290	165	130	35	100	3	11	4.00	3.55	3.20
LBTS3016	308	165	135	35	100	3	11	4.12	3.70	3.40
LBTS3018	315	180	140	38	100	3	11	4.50	3.854	3.50
LBTS3021	300	215	165	50	100	3	11	6.70	5.72	5.20
LBTS3114	305	140	110	30	100	3	11	4.49	3.40	3.10
LBTS3116	315	165	130	30	100	3	11	4.60	3.50	3.20
LBTS3118	315	180	145	50	100	3	11	4.80	3.60	3.30
LBTS3121	315	220	160	50	100	3	11	5.80	5.07	4.99
LBTS3216	320	160	135	38	100	3	11	4.40	3.80	3.50
LBTS3218	320	180	140	38	80	4	11	4.90	4.30	3.90
LBTS3316	335	160	135	35	80	4	11	4.50	3.85	3.50
LBTS3318	335	180	140	35	80	4	11	5.21	4.50	4.10
LBTS3321	333	217	167	50	80	4	11	7.25	6.30	5.7
LBTS3325	340	255	160	50	80	4	11	7.60	6.50	5.90
LBTS3518	350	182	152	40	90	4	11	5.60	4.60	4.20
LBTS3621	360	220	168	50	90	4	11	7.78	6.60	6.00
LBTS3718	380	195	140	40	90	4	11	6.40	5.39	4.90
LBTS3823	380	230	160	50	90	4	11	8.00	6.90	6.30
LBTS3917	390	170	140	38	100	4	11	6.30	5.20	4.80
LBTS4118	415	190	145	45	95	4	11	6.60	5.70	5.20
LBTS4121	415	220	172	50	95	4	11	8.10	7.00	6.35
LBTS4216	420	160	135	40	90	4	11	6.80	5.70	5.20
LBTS4423	440	233	165	50	85	5	11	8.20	7.10	6.50
LBTS4521	464	220	165	50	85	5	11	10.60	8.80	8.00
LBTS4723	475	233	160	50	95	5	11	11.00	9.10	8.90
LBTS4626	460	260	190	50	95	5	11	12.42	10.40	9.5
LBTS5121	510	220	165	50	95	5	11	11.50	9.90	9.00
LBTS5626	560	260	190	50	105	5	11	17.50	15.20	13.68

--------------------------------------------------------------------------------------------------------------

Hengtong Elevator Buckets

•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Less weight, prolong service life of buckets and belts, reduce elevator consumption.
•A direct replacement for many other international brands.
•Unique elevator bucket design with multiple patents.
•Our elevator buckets are well regarded, worldwide for high cost /quality ratio.

Material	HDPE	Nylon 6	UHMWPE	PU	Mild Steel	Stainless
Cost	1	3	3	4	2	4
Wear Resistance	1	2	3	4	3	4
Impact Resistance	1	2	2	2	2	2
FDA Food Approved	Yes	Yes	Yes	No	No	No
Max Temp℃ Continuous	70	100	70	60	180+	250+
Max Temp℃ Peak	80	120	80	70	220	400

Remark: Code 1=low 4=high

•HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .

•Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.

•UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.

•PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.

•Mild Steel: General purpose, long life, well suited to agricultural and industrial products.

•Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.

----------------------------------------------------------------------------------------------------------------
