Introduction

LQ Type Elevator Bucket

(Shallow Bottom Bucket)

Material: HDPE/NYLON/UHMWPE/PU
Features:
•Shallow bottom elevator bucket for agricultural use.
•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
Using Recommendations:
•Minimum bucket spacing: bucket projection "B" or "B"-20mm
•For engineering purposes, we recommend using “(Z-Y) + 5%” for usable capacity.
•Mounting holes can be customized on request
Technical Specifications:

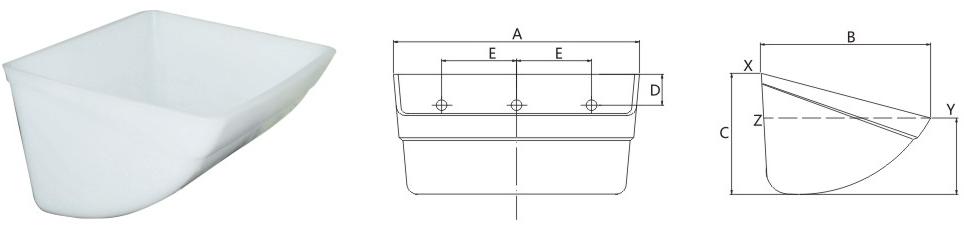

Model	Bucket Dimension* (mm)			Mounting Holes (mm)				Capacity(L)
Model	Length A	Proj. B	Depth C	Distance Down D	Center to Center E	Number of Holes	Hole Diameter	X-Y	(Z-Y)+5%	Z-Y
LQ1009	106	93	66	25	50	2	7	0.40	0.22	0.21
LQ1311	136	114	72	25	60	2	7	0.50	0.32	0.30
LQ1312A	138	120	91	30	60	2	7	0.80	0.64	0.61
LQ1613A	165	135	82	25	90	2	9	0.96	0.76	0.72
LQ1814	186	140	87	30	100	2	9	1.13	0.82	0.78
LQ1914	190	145	115	35	100	2	9	1.60	1.26	1.20
LQ2312	234	125	95	35	120	2	9	1.50	1.16	1.10
LQ2314A	235	143	96	30	120	2	9	1.68	1.31	1.25
LQ2315A	235	155	91	30	120	2	9	1.78	1.49	1.42
LQ2316	238	160	102	35	120	2	9	1.90	1.38	1.31
LQ2417A	248	178	120	40	120	2	9	2.60	2.30	2.18
LQ2616	260	167	144	50	80	3	9	2.20	1.32	1.25
LQ2814A	285	143	96	30	90	3	9	2.08	1.59	1.51
LQ2815A	285	155	91	30	90	3	9	2.20	1.86	1.77
LQ2816A	290	167	108	35	90	3	9	2.65	2.31	2.20
LQ2817A	290	178	120	40	90	3	9	3.35	2.63	2.50
LQ2824A	289	244	166	45	100	3	9	6.40	5.90	5.60
LQ3118A	315	188	123	35	100	3	9	4.25	3.33	3.17
LQ3216A	330	165	111	35	80	4	9	3.23	2.36	2.25
LQ3321	337	215	140	40	85	4	9	5.50	3.90	3.70
LQ3325	339	259	170	50	85	4	9	8.50	6.90	6.55
LQ3823A	382	230	165	45	100	4	9	8.00	6.30	6.00
LQ3917	393	170	130	40	100	4	9	5.00	3.42	3.25
LQ4423	447	230	165	45	90	5	9	9.20	7.67	7.30
LQ4723	475	230	164	45	95	5	9	10.00	8.50	8.10
LQ4726A	470	260	170	50	95	5	9	11.5	9.90	9.40
LQ5121	519	225	168	50	100	5	11	10.76	9.46	8.60
LQ5626A	569	260	170	50	115	5	11	15.0	12.35	11.75

Remark:“A” mean that reinforced front lip and side, long life prolong 1.3 times compare to general buckets.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Hengtong Elevator Buckets

•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Less weight, prolong service life of buckets and belts, reduce elevator consumption.
•A direct replacement for many other international brands.
•Unique elevator bucket design with multiple patents.
•Our elevator buckets are well regarded, worldwide for high cost /quality ratio.

Material	HDPE	Nylon 6	UHMWPE	PU	Mild Steel	Stainless
Cost	1	3	3	4	2	4
Wear Resistance	1	2	3	4	3	4
Impact Resistance	1	2	2	2	2	2
FDA Food Approved	Yes	Yes	Yes	No	No	No
Max Temp℃ Continuous	70	100	70	60	180+	250+
Max Temp℃ Peak	80	120	80	70	220	400

Remark: Code 1=low 4=high

•HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
•Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
•UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
•PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
•Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
•Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.

-----------------------------------------------------------------------------------------------------------------------------------
