Introduction

LS Type Elevator Bucket

(Deep Bottom Bucket)

Material:HDPE/NYLON/UHMWPE/PU
Features:
•Deep bottom elevator bucket for agricultural use.
•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc.
Using Recommendations
•Minimum bucket spacing: bucket projection “B” +25mm.
•For engineering purposes, we recommend using “(Z-Y) +10%” for usable capacity.
•Mounting holes can be customized on request.

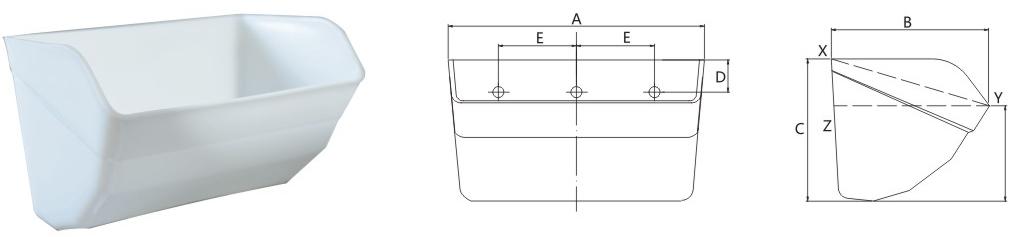

Technical Specifications:

Model	Bucket Dimension* (mm)			Mounting Holes (mm)				Capacity(L)
Model	Length A	Proj. B	Depth C	Distance Down D	Center to Center E	Number of Holes	Hole Dia.	X-Y	(Z-Y)+10%	Z-Y
LS0705	78	55	71	20	40	2	7	0.16	0.07	0.06
LS0807	90	75	64	20	50	2	7	0.25	0.15	0.14
LS1009A	106	92	88	25	50	2	7	0.42	0.29	0.26
LS1009	100	90	93	24	50	2	7	0.40	0.29	0.26
LS1109	116	92	85	25	60	2	7	0.42	0.30	0.27
LS1307	130	75	80	25	60	2	7	0.40	0.24	0.22
LS1309	130	90	80	25	60	2	7	0.50	0.25	0.23
LS1311A	134	115	94	35	60	2	7	0.75	0.56	0.51
LS1311	134	115	94	35	60	2	7	0.75	0.56	0.51
LS1411	145	110	96	35	60	2	7	0.75	0.59	0.54
LS1508	152	84	78	18	76	2	7	0.47	0.35	0.32
LS1511A	150	110	100	35	80	2	7	0.90	0.62	0.56
LS1612	165	120	110	40	90	2	7	1.05	0.68	0.62
LS1613	164	139	124	40	90	2	7	1.40	1.12	1.02
LS1812A	188	125	115	40	120	2	9	1.30	0.73	0.66
LS1814A	188	140	130	40	120	2	9	1.70	1.49	1.35
LS2010	202	102	98	20	120	2	7	0.91	0.66	0.60
LS2014A	208	140	120	40	120	2	9	1.80	1.21	1.10
LS2312	235	125	125	40	120	2	9	1.90	1.32	1.20
LS2314A	235	140	130	40	85	3	9	2.27	1.60	1.45
LS2316A	238	166	154	45	85	3	9	3.00	1.85	1.68
LS2614A	266	140	125	40	75	3	9	2.70	1.70	1.55
LS2616A	266	166	154	45	90	3	9	3.30	2.30	2.09
LS2812	280	125	130	40	100	3	9	2.40	1.78	1.62
LS2814A	280	140	139	40	100	3	9	2.70	1.87	1.70
LS2816A	282	168	154	45	100	3	9	3.70	3.01	2.74
LS2823	289	230	190	55	100	3	9	6.70	4.85	4.41
LS2916	297	170	155	45	110	3	9	4.00	2.77	2.52
LS2919A	295	197	178	50	75	4	9	5.80	4.72	4.29
LS3114	312	147	146	45	80	4	9	3.26	2.30	2.09
LS3116A	313	168	154	45	85	4	9	4.40	3.09	2.81
LS3118	315	190	175	45	85	4	9	5.10	3.52	3.20
LS3121A	315	220	200	55	85	4	9	7.40	6.12	5.56
LS3518	358	190	180	50	95	4	9	6.80	5.09	4.63
LS3621A	365	220	200	55	95	4	9	8.50	7.10	6.45
LS4118A	419	190	180	50	85	5	9	8.40	5.64	5.13
LS4121A	418	222	200	55	85	5	9	10.40	8.77	7.97
LS4621	460	220	200	55	95	5	9	11.70	9.57	8.70
LS4822	480	223	210	68	76	6	9	13.00	9.24	8.40
LS5121	519	225	210	55	90	6	9	13.11	11.66	10.60
LS6626	669	260	250	55	100	6	13	21.00	17.09	15.54
LS4311	435	105	152	25	100	4	7	2.20	1.82	1.65
LS3311	330	105	152	25	85	3	7	2.00	1.60	1.45
LS2511	250	114	115	25	125	2	7	1.50	0.99	0.90
LS3307	325	70	70	35	235	2	9	0.80	/	/
LS2607	260	70	70	35	170	2	9	0.50	/	/

“A” mean that reinforced front lip and side, long life prolong 1.3 times compare to general buckets.

----------------------------------------------------------------------------------------------------------------

Hengtong Elevator Buckets

•High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved.
•Less weight, prolong service life of buckets and belts, reduce elevator consumption.
•A direct replacement for many other international brands.
•Unique elevator bucket design with multiple patents.
•Our elevator buckets are well regarded, worldwide for high cost /quality ratio.

Material	HDPE	Nylon 6	UHMWPE	PU	Mild Steel	Stainless
Cost	1	3	3	4	2	4
Wear Resistance	1	2	3	4	3	4
Impact Resistance	1	2	2	2	2	2
FDA Food Approved	Yes	Yes	Yes	No	No	No
Max Temp℃ Continuous	70	100	70	60	180+	250+
Max Temp℃ Peak	80	120	80	70	220	400

Remark: Code 1=low 4=high
•HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
•Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
•UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
•PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
•Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
•Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.
-----------------------------------------------------------------------------------------------------------------------------------
